Installation

In the article below, we offer you instructions on how to mount Eibach PRO-SPACER wheel spacers. We invite you to read through it carefully and get fimiliar with the mounting of individual systems.

Eibach SYSTEM 1

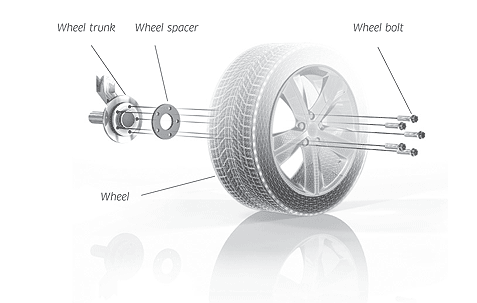

Dystanse Eibach System 1 schemat

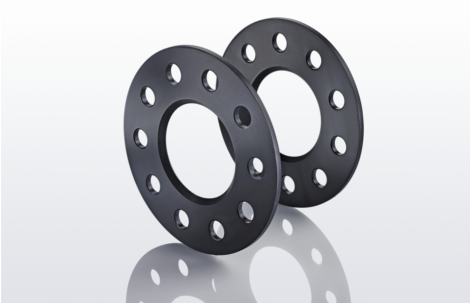

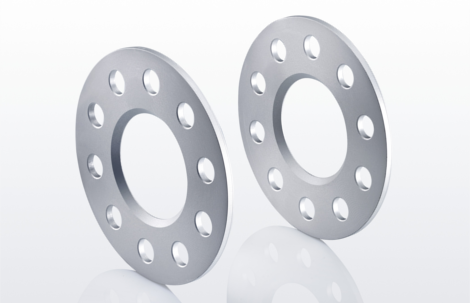

  • Dystanse Eibach System 1 Dystanse Eibach System 1 wersja Black
  • disc with a pass-through system
  • with centering boring
  • track change from 10 mm to 20 mm (disc thickness from 5 mm to 10 mm)
  • fastening by using longer wheel bolts
  • delivery without attachment parts (to order separately)

Eibach SYSTEM 2

Dystanse Eibach System 2 schemat

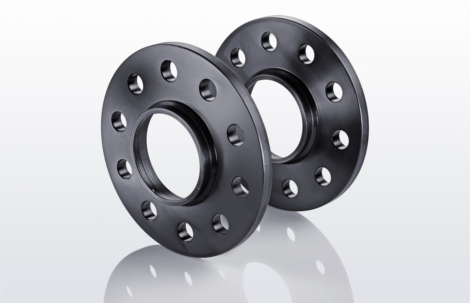

  • Dystanse Eibach System 2 Dystanse Eibach System 2 wersja Black
  • disc with a pass-through system
  • with centering collar (centering nose)
  • track change from 14 mm to 40 mm (disc thickness from 7 mm to 20 mm)
  • fastening by using longer wheel bolts
  • delivery without attachment parts (to order separately)

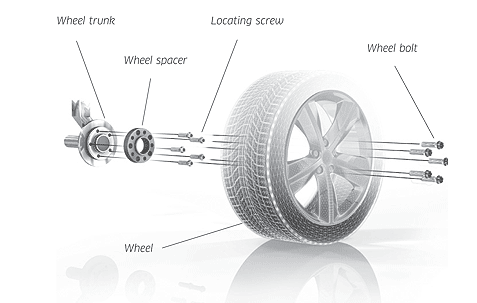

Eibach SYSTEM 3 | 7

Dystanse Eibach System 3 i System 7 schemat

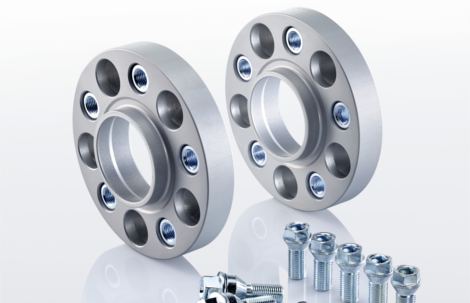

  • Dystanse Eibach System 3 i System 7 Dystanse Eibach System 3 i System 7 wersja Black
  • disc with a screw system
  • with centering collar (centering nose)
  • track change from 40 mm to 60 mm (disc thickness from 20 mm to 30 mm)
  • fastening:
    a) disc at wheel carrier: by using special fi xing bolts
    b) wheel at disc: by using production (or accessory-wheel-) bolts
  • delivery with attachment parts
  • system 7: with steel bushing

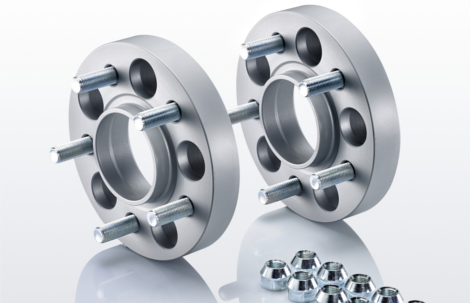

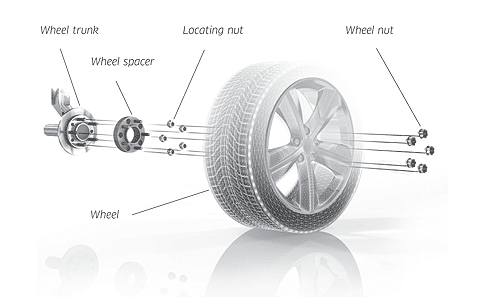

Eibach SYSTEM 4 | 8

Dystanse Eibach System 4 i System 8 schemat
  • Dystanse Eibach System 4 i System 8
  • disc with a screw system
  • with centering collar (centering nose)
  • track change from 30 mm to 60 mm (disc thickness from 20 mm to 30 mm)
  • fastening:
    a) disc at wheel carrier: by using special-fi xing nut
    b) wheel at disc: by using production (or accessory) nut
  • delivery with attachment parts
  • system 8: without centering collar (centeringnose)

Eibach SYSTEM 5

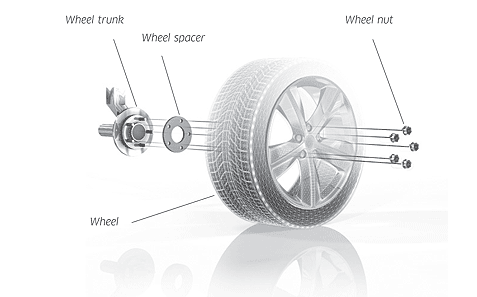

Dystanse Eibach System 5 schemat

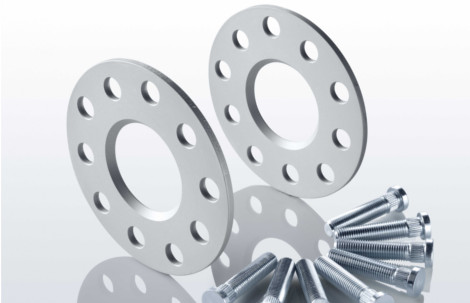

  • Dystanse Eibach System 5 Dystanse Eibach System 5 wersja Black
  • disc with a pass-through system
  • with centering boring
  • track change from 10 mm to 16 mm (disc thickness from 5 mm to 8 mm)
  • fastening by using longer knurled stud (to change at the automobile)
  • delivery with attachment parts (for standard wheels or wheels with standard fixing)

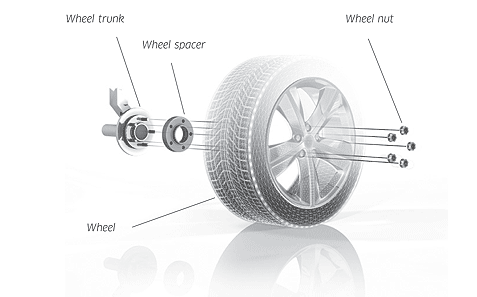

Eibach SYSTEM 6

Dystanse Eibach System 6 schemat

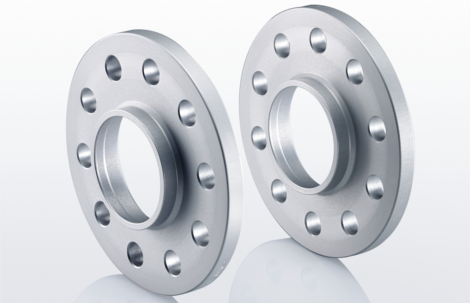

  • Dystanse Eibach System 6 Dystanse Eibach System 6 wersja Black
  • disc with a pass-through system
  • with centering collar (centering nose)
  • track change from 20 mm to 40 mm (disc thickness from 10 mm to 20 mm)
  • fastening by using longer knurled stud (to change at the automobile)
  • delivery with attachment parts (for standard wheels or wheels with standard fixing)
